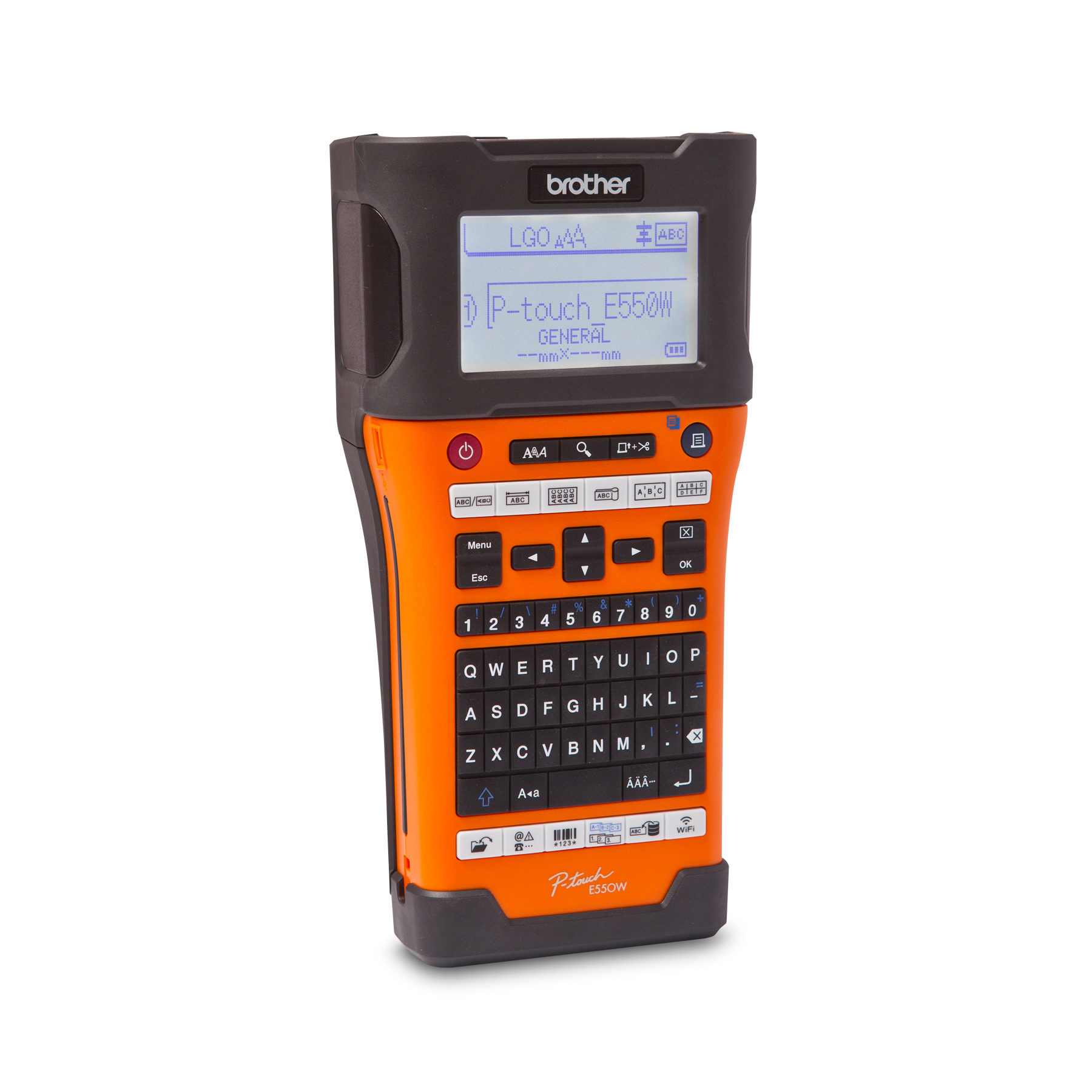

Brother PT-E550WVP Industrial Handheld Wireless Labeller
- Model #:
Tape type (Laminated)
Max. tape width (24 mm)
Cutter type (Auto, full & half)
Power supply (Rechargeable Li-ion battery & AC adapter)
Connectivity (Wi-Fi, USB)
Brother PT-E550WVP Industrial Handheld Wireless Labeller
- Model #:
This industrial handheld labelling tool kit comes with design software to help integrate into workflow processes. See full product description
Your professional reputation is on the line with every job you do. Thanks to Brother s PT-E550WP, you can take pride in all of your projects by printing durable labels for electrical or datacom installations. Use the built-in labelling functions or connect to your computer to use the included software for endless design possibilities. An automatic cutter helps you print and cut wider labels up to 24 mm wide with up to 7 lines of text for cable wrapping, cable flagging, faceplates, patch panel, punch block, barcoding, serialization and more. Built-in WiFi® connectivity, Wireless Direct and Brother s free Mobile Cable Label Tool app and the iLink&Label app that works with Fluke Networks LinkWare Live let you turn your smartphone, tablet or laptop into a powerful wireless jobsite labelling partner. A rechargeable Li-ion battery ensures you have a power supply anywhere your job takes you.
To learn more about the 'Brother PT-E550WVP Industrial Handheld Wireless Labeller', download the brochure here.
- Wireless Connectivity Comes with software to design and print custom labels wirelessly from a computer tablet or mobile device or wireless transfer them into the labelling tool and print without a computer
- Wirelessly Transfer Label Designs & Databases to the Job Site Designed for labelling bigger projects onsite by entering a few characters to search the database and then print the labels
- Automatic Strip Cutter Prints Strip of Labels From a Database Helps save time and helps reduce human input error
- Print Strip of Labels Faster New mechanism design with built-in fully automatic strip cutter
- Prints Wider Labels New font sizing technology enables printing more clearly formed and readable characters on a 24mm wide label that is ideal for conforming to the short and long ANSI/EIA/TIA-606x identifier format
- Smart Labelling Application Keys Designed to help you save time and start printing labels for cables faceplates patch panels and more without the learning curve or reading user manuals
- Easy to Use Labelling Solution Comfortable grip design for one or two hands operation large backlit display and QWERTY keyboard helps make printing labels as simple as texting or sending a message
- HGe and TZe Tapes Compatible with HGe and TZe tapes that offer adhesive and colour choices for virtually any labelling application
- Prints Laminated Labels Innovative technology prints and laminates the label automatically encapsulating the print between two protective layers for more durability and resistance against harsh conditions like abrasion extreme temperatures chemicals and moisture plus giving the label a superior finish
- Prints on Heat Shrink Tubing Compatible with the new line of HSe heat shrink tubing that is smear resistant for marking cables fiber and wires
Power for Industry Pros
Brother P-touch laminated labels:
Designed and tested to last
We ve rigorously tested our P-touch TZe labels under conditions like abrasion, chemicals, UV light and temperatures varying from -80°C to +150°C . Our labels withstand these extreme conditions and meet the requirements of professionals and their environments.
Engineered with six layers of materials for exceptional durability and performance, our innovative laminated tape technology is what sets Brother apart from the competition.
Dedicated features for professionals

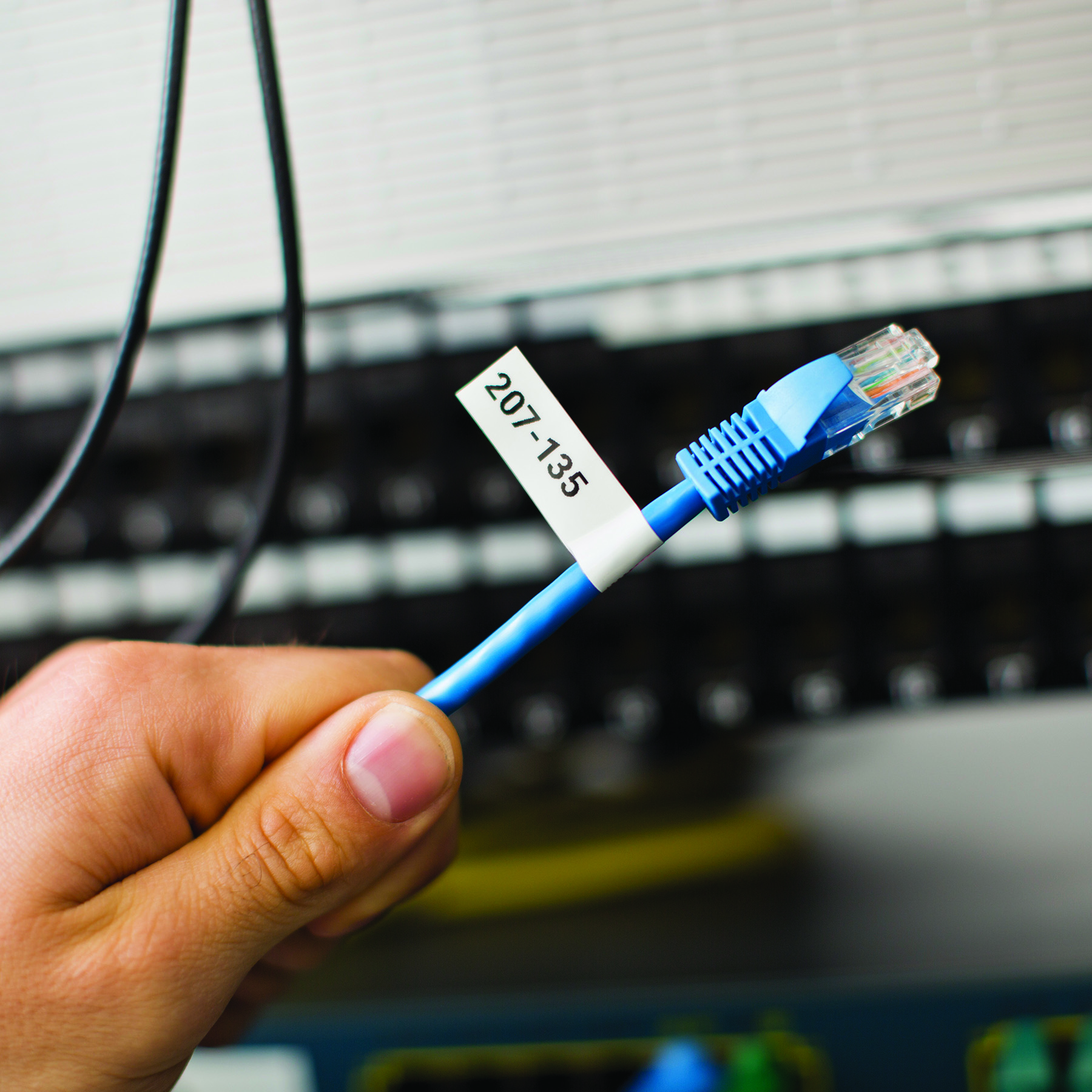

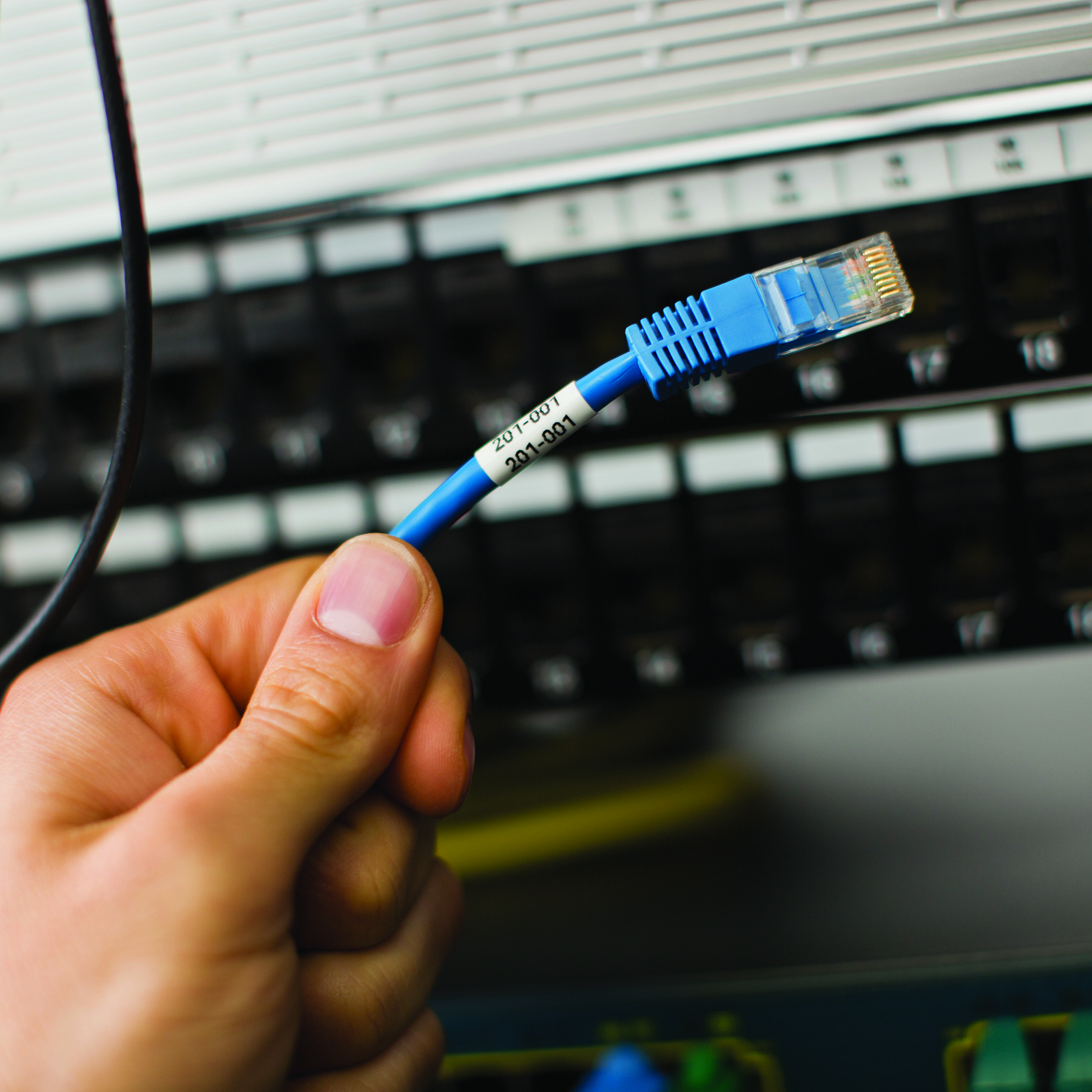

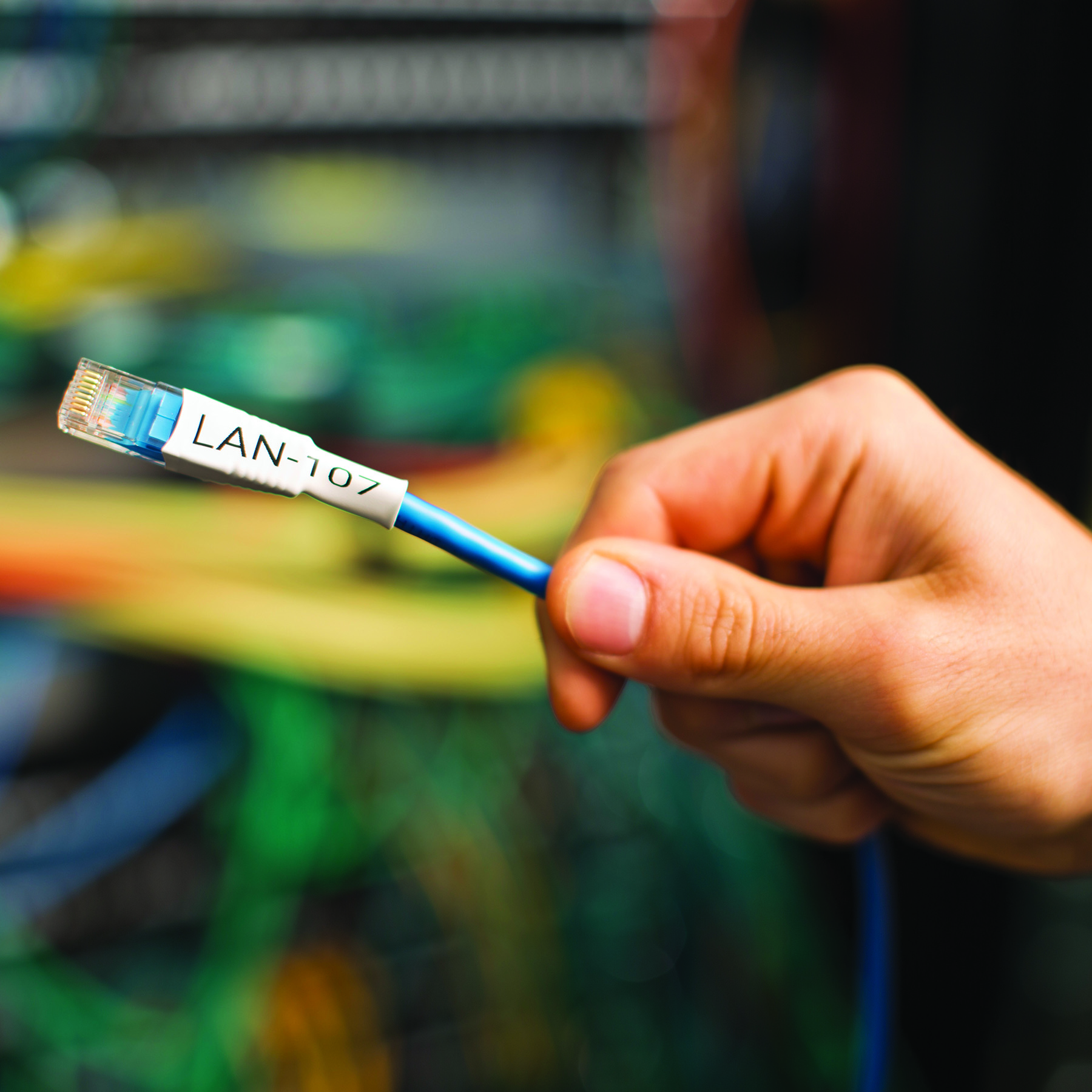

The PT-E550WVP has features designed for electricians, cable installers and construction professionals, including cable wrapping, cable flagging and punch block labelling. With several templates already available, you re sure to choose the right format without having to make manual adjustments. The integrated serialization function allows you to edit labels with a numerical or alphabetical sequence. This labeller also enables you to print on durable, heat shrink tubing.
A connectable labeller for
This versatile labeller features 384 built-in symbols, including those most commonly used for industrial applications. Take label personalization even further with WiFi® connectivity or by connecting the PT-E550WVP to your computer via USB and create labels using P-touch Editor to import databases, screenshots and insert logos or images. The possibilities are virtually endless!
The professional labeller
that goes everywhere

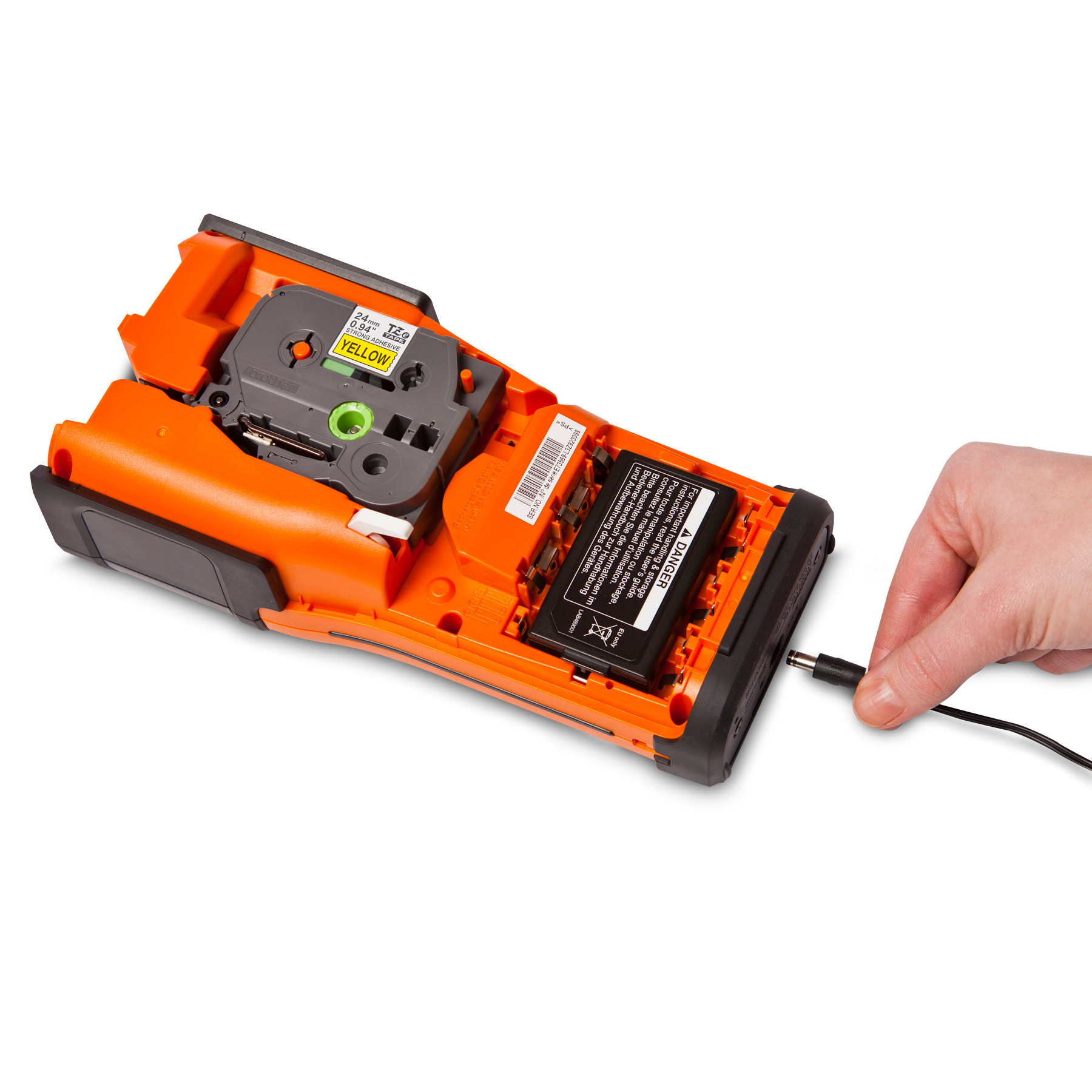

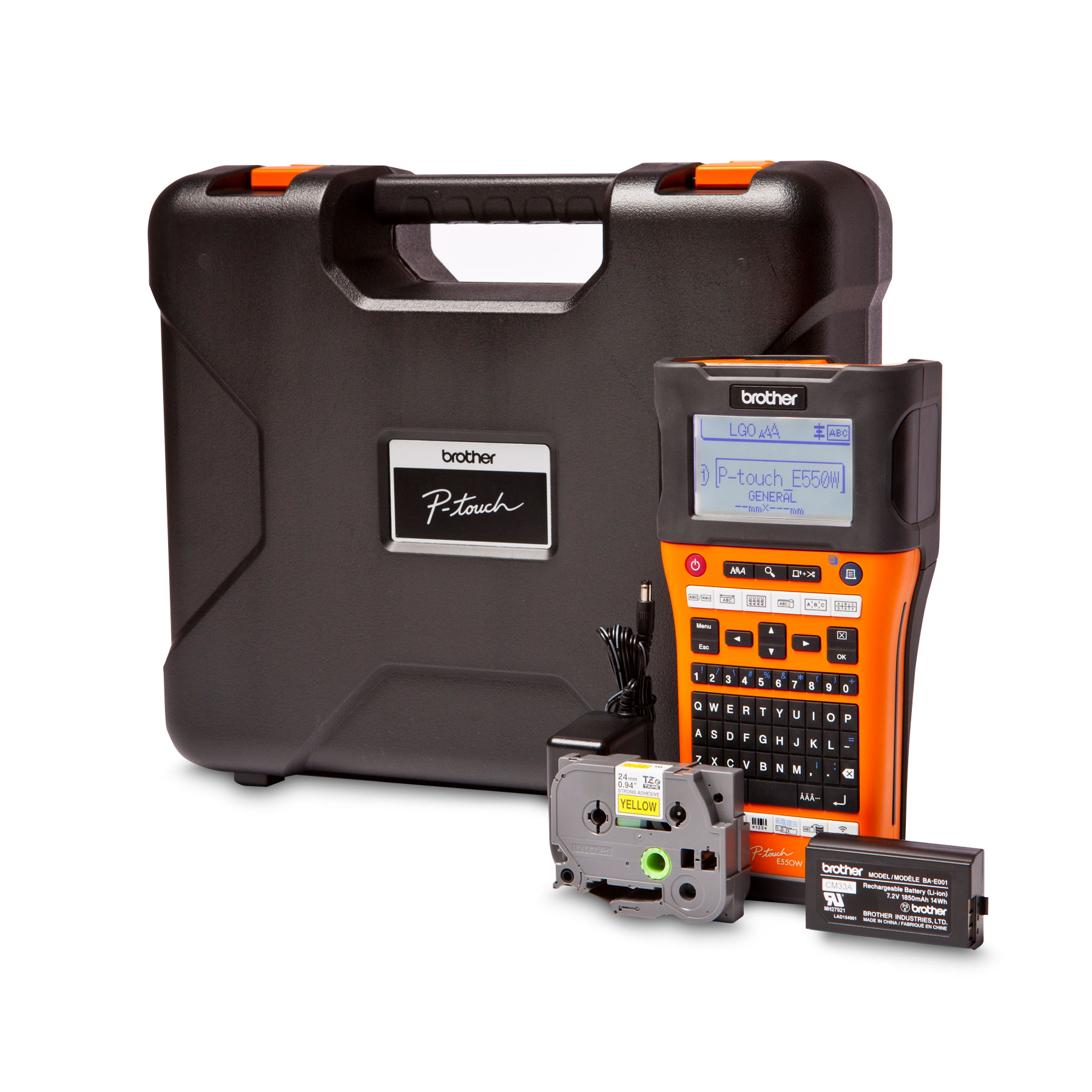

This portable labeller will help you avoid unnecessary back and forth trips by keeping the things you need on hand to get the job done. Download and store custom labels or databases from your PC, then print them from your PT-E550WVP labeller, even if you re on the go. The PT-E550WVP comes with a carrying case and an AC adapter so you can take your labelling solution anywhere you need it. For added flexibility, use its long-lasting, included rechargeable battery.
Print wirelessly from your mobile device

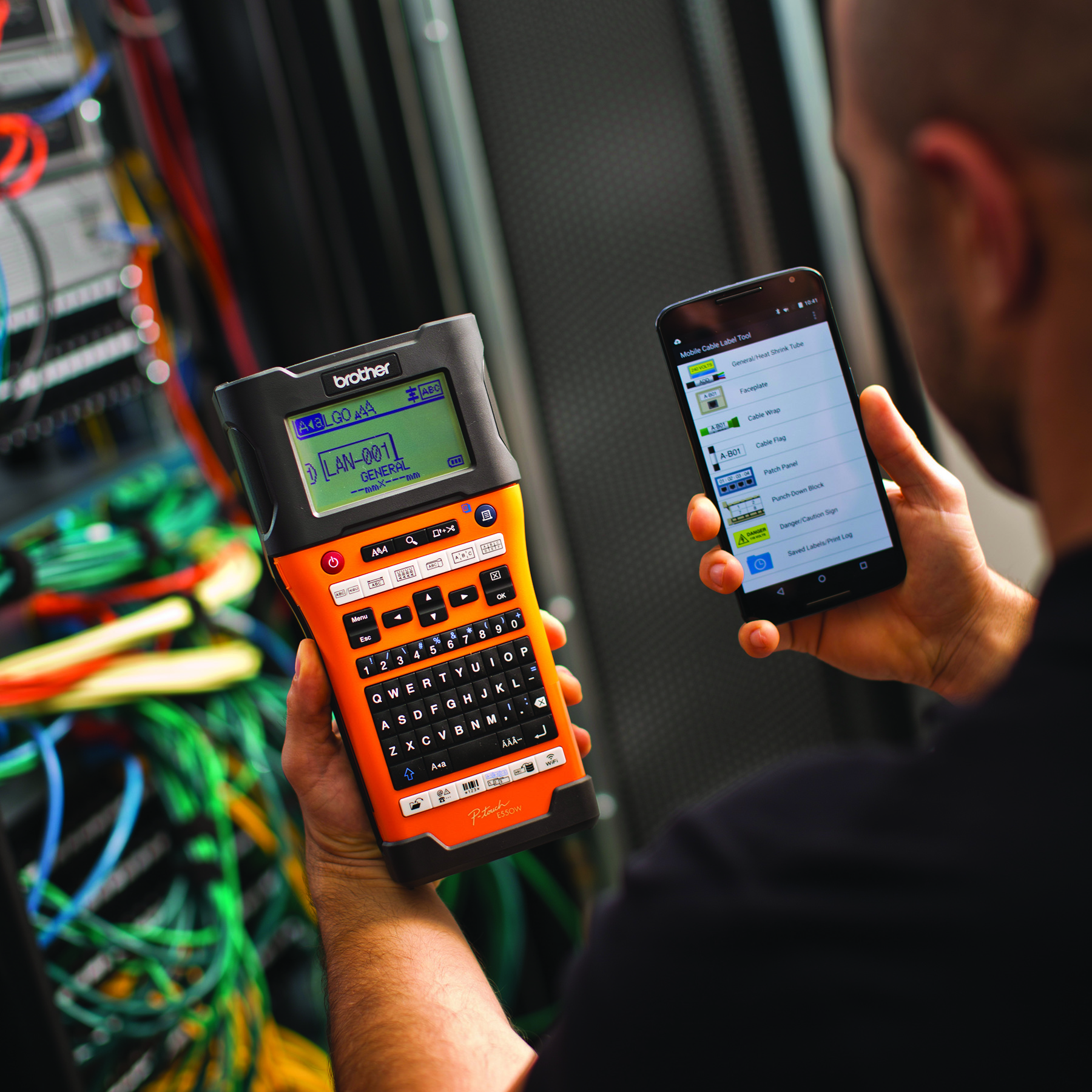

Thanks to WiFi® connectability, creating labels from your smartphone or tablet is quick and easy! Simply download Brother s free iPrint&Label and Mobile Cable Label Tool apps to create your labels in just a few clicks.
A high-performance motor
for efficient labelling

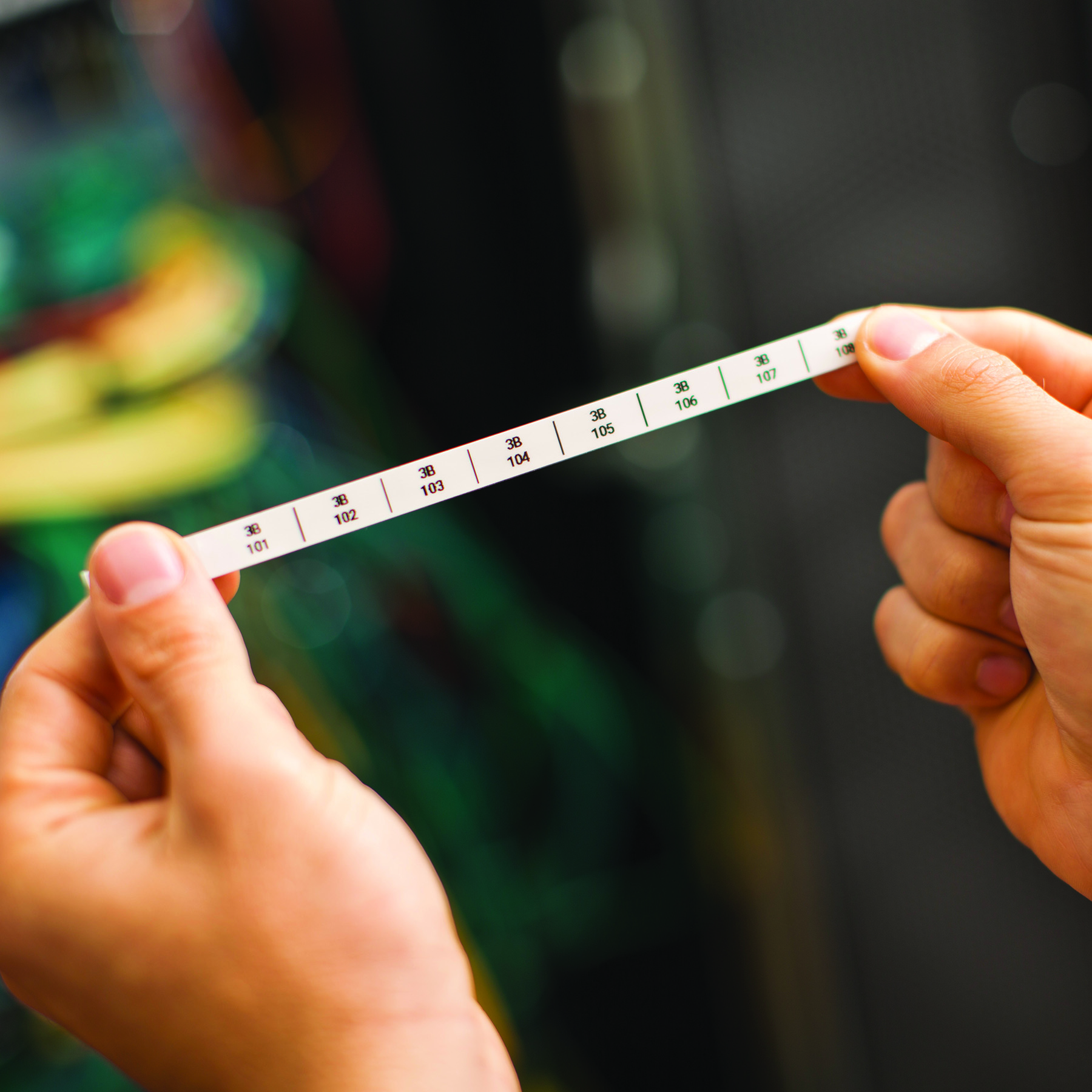

The PT-E550WVP prints labels ranging from 3.5 mm to 24 mm wide and offers a printing speed of up to 30 mm/second to reduce printing time. Its advanced automatic cutting system allows you to produce a long strip of serialized labels, which can be easily peeled one at a time, ensuring that the labels are kept in the right order.
label design software for PC and Mac

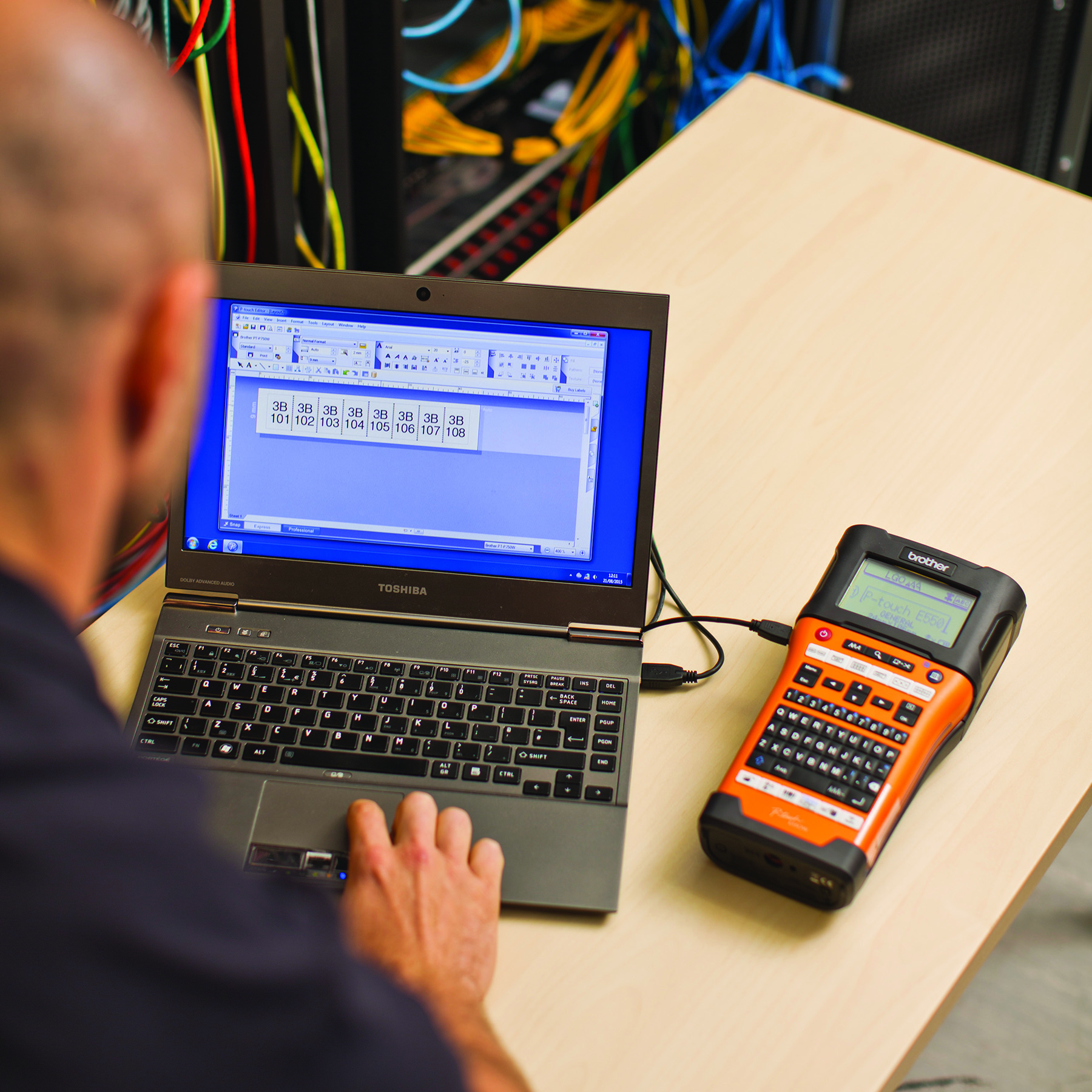

Brother s free P-touch Editor software allows you to design labels on your PC or Mac. Offering many possibilities such as printing barcodes, importing logos and other graphics, it also allows you to use the fonts installed on your computer. Import a Microsoft Excel database or a .csv file to print multiple labels quickly and efficiently.
Brother s cloud-based iLink&Label mobile app bridges the gap between the office and the jobsite, bringing project data to labelling tools onsite, where it s needed. Used with Brother PT-E550WVP label printers and Fluke Network s LinkWare and Versiv testers, it delivers advanced mobile label printing capabilities such as higher speeds, greater efficiency and improved accuracy.
Mobile Cable Label Tool app
Perfect for anyone wanting to improve efficiency, Brother s Mobile Cable Label Tool app works with your Brother PT-E550WVP to print labels from a selection of standard templates or create customized labels for endless uses. Packed with convenient functions, this app helps you produce labels that are precise, professional and long lasting.
Mobile Transfer Express app
Label printing has never been as easy as it is with Brother s Mobile Transfer Express, a user-friendly app that allows you to use a mobile device to transfer compatible label templates, databases and images with P-touch Transfer Manager (Windows version) to a label printer.
A wide choice of specialty tapes
In addition to standard laminated tapes available in different sizes and colours, Brother has developed a range of tapes for special applications in the industrial sector.
These include flexible ID laminated tapes for curved surfaces (cable wrapping, cylindrical surfaces, tubes and pipes), strong adhesive laminated tapes for irregular surfaces (textured, rough, slippery painted metal, powder-coated or uneven items) or heat shrink tubing to tightly fit wires or cables.
|Max. Print Resolution||180 x 180 dpi|
|Barcodes (stand-alone mode)||CODABAR,Code 128,Code 39,EAN-13,EAN-8,GS1-128 (UCC/EAN-128),ITF (I-2/5),UPC-A,UPC-E|
|Max. Print Speed||20 mm / sec|
|Carton Contents||PT-E550W, Protective Carrying Case, AC Adapter (AD-E001), Li-ion Rechargeable Battery Pack (BA-E001), TZeFX231 12mm x 8m Black on White Flexible ID Tape, Wrist Strap, CD (P-touch Editor 5.1 Software, Printer Drivers, Transfer Manager, User Guides), Warranty & Product Registration Sheet|
|Warranty||1-Year Limited Warranty|
|Tape Technology||Thermal Transfer|
|Tape Types||Laminated,Non-laminated,Acid Free,Extra Strength Adhesive,Flexible ID,Heat Shrink Tube,Iron-On Fabric,Stencil,Tamper-Evident|
|Unit Weight||1.1 kg|
|Model Type||Industrial Handheld|
|Power Supply||Li-ion Rechargeable, AAA Size Alkaline, AC Adapter|
|Unit Dimensions (W" x D" x H")||126 x 250 x 94 mm|
|Operating System (Compatibility)||Android® 1.6 and Later,iOS® 3.0 and Later,Mac® OS X 10.7 and later,Windows Server® 2008,Windows Server® 2012,Windows® 10,Windows® 7,Windows® 8,Windows® 8.1,Windows® Vista|
|Batteries||6 AA (not included),Rechargeable Li-ion (included)|
|LCD Display||Backlit Graphic 15 characters x 2 lines|
|Text Framing/Fill Pattern||6 Frames / No Fill Patterns|
