STITCH PRECISION WITH
NEW STITCHVISION TECHNOLOGY
Introducing StitchVision Technology, a revolutionary new system for virtually perfect stitch positioning* and more precise previews via an intelligent projection of light. Preview, audition and edit designs and stitches directly on your fabric.
Shop NowBrother XP1 The Luminaire Sewing, Embroidery and Quilting Machine
- Model #:
- XP1 XP1Brother
With state-of-the-art technology that helps you achieve perfection with every stitch, The Luminaire XP1 redefines excellence in the sewing and embroidery world. See full product description
Workspace
5” x 13.1”
Hoop size
10 5/8" x 16"
Built-in designs
1,157
Built-in Disney designs
192
Built-in stitches
821
Included accessory feet
14
Discover the XP1 for an enlightened sewing, embroidery and quilting experience that is light years ahead! With state-of-the-art StitchVision Technology, the Luminaire uses innovative beaming light for virtually perfect stitch placement and more precise previews. Offering our most generous workspace and largest embroidery area ever and a revolutionary collection of features like gridline and grid markers, a large LCD touchscreen display and an easy-to-view LED embroidery pointer, this machine will help you achieve perfection in every stitch.
To learn more about the 'Brother XP1 The Luminaire Sewing, Embroidery and Quilting Machine', download the brochure here.
- StitchVision Technology lets you preview stitches and embroidery designs directly on your fabric with an intelligent projection system.
- Guideline and grid markers project a variety of lines on your fabric to light your path with precision.
- Dual-purpose stylus helps you make adjustments directly on your fabric for increased accuracy.
- Our largest 10 5/8" x 16" embroidery area lets you easily create larger-than-life embroidery.
- Spring lever release frame includes rubber plates on both sides for a superior grip on fabric, while an ergonomic spring lever release enables easier, clamp-free hooping.
- Largest ever workspace (65 square inches total size, 13.1" needle to arm) accommodates large projects even as big as a rolled king-sized quilt.
- Built-in pointer casts a ‘T’ mark in one of three colour choices to ensure visibility on any fabric, highlighting the centre of your embroidery design and needle drop positioning.
- Large 10.1” built-in high-definition LCD display with capacitive technology lets you view your creations in crisp, vivid colour and navigate easily with the scrolling menu and large, intuitive icons. Works like a tablet with familiar scrolling, pinching and sliding.
- Enhanced InnovEye® Plus technology up to 4x larger viewing and scans your embroidery area up to 400% wider than before.
- Echo quilting follows the contour of your original embroidery design, expanding outwards with adjustable spacing to help you customize your designs.
There’s a new star in the sewing world

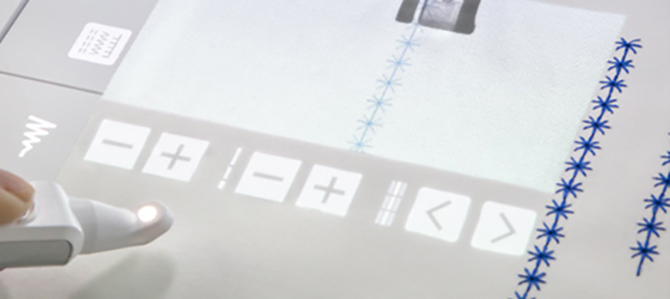

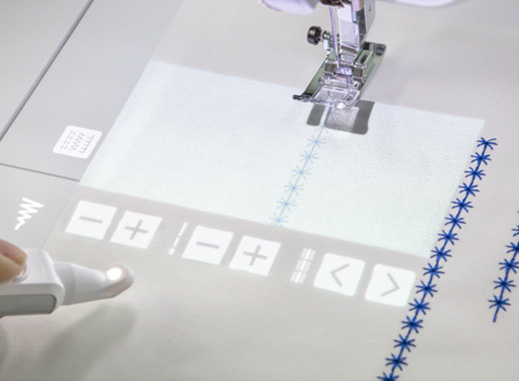

SEE YOUR STITCHES PROJECTED ON YOUR FABRIC
Choose your desired sewing stitch and watch in amazement as the stitch is projected onto the 5" x 3" virtual preview area. Seeing is believing!

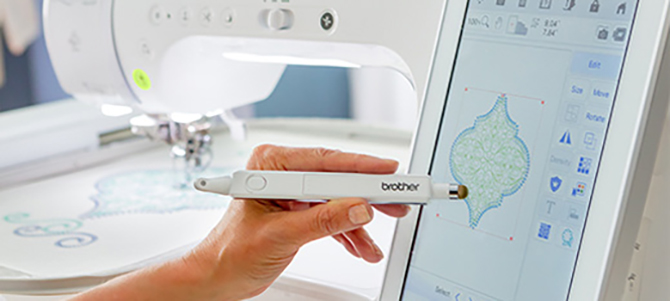

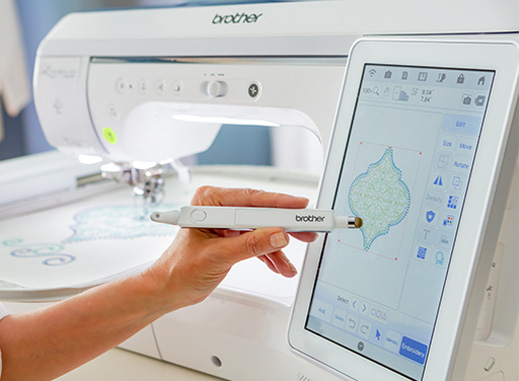

DUAL PURPOSE STYLUS
Use the innovative Dual Purpose Stylus to make adjustments to your stitches directly on your fabric for even more accuracy than ever before. Adjust your stitch width, length, and left/right shift using the revolutionary stylus.
Want to choose a different stitch? Easily switch your stitch design by pressing the left or right arrow keys using the stylus.
Dual uses for maximum efficiency. The soft tip works on the LCD display, allowing you to select, move or enhance projects directly on the display.

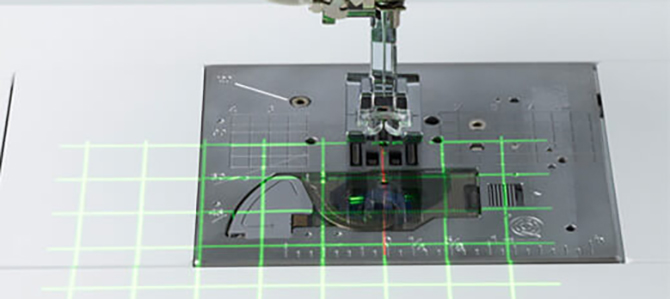

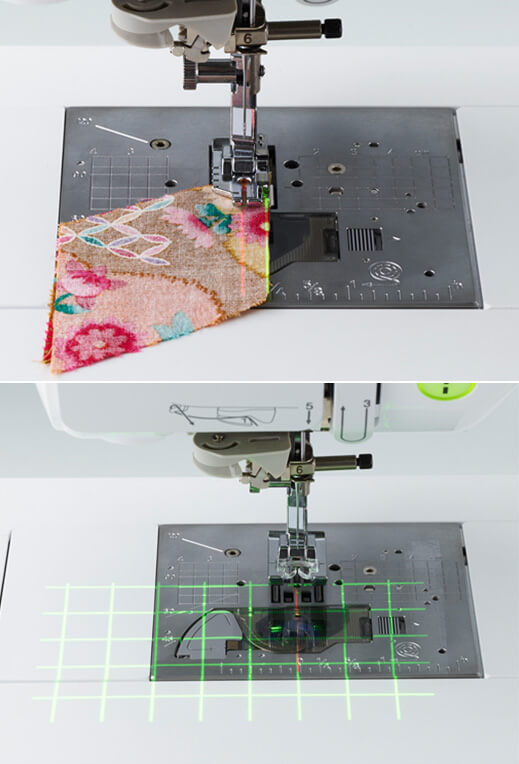

GUIDELINE MARKER LINE
AND GUIDELINE MARKER GRID
The 5" X 3" virtual preview area also displays a guideline marker in single, double, angled and grid lines. Use gridlines for creating multiple rows of parallel stitching, for pin tucks, hems, curtain rod pockets, decorative stitches, cross hatch quilting, or smocking.
When creating mitered corners, sashing strips, or Y seams, diamond cross hatching or square corners, use the projector to preview your angle lines.

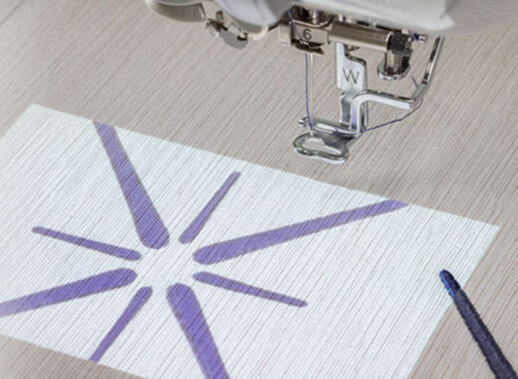

STITCHVISION TECHNOLOGY
FOR MORE PRECISE PLACEMENT
OF EMBROIDERY DESIGNS
Use the StitchVision Technology for virtually perfect placement of your embroidery* designs. After choosing an embroidery design, select the StitchVision Technology icon on the LCD display to see your embroidery design projected on your hooped fabric, allowing you to get a realistic preview before you begin embroidering.

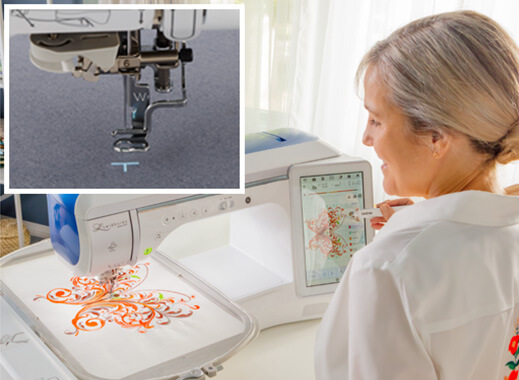

EASY-TO-VIEW EMBROIDERY POINTER
A built-in embroidery pointer is shown as a "T" mark on your fabric. Three color choices ensure visibility regardless of fabric color. The pointer can show the center of your embroidery design as well as the needle drop position on the fabric.

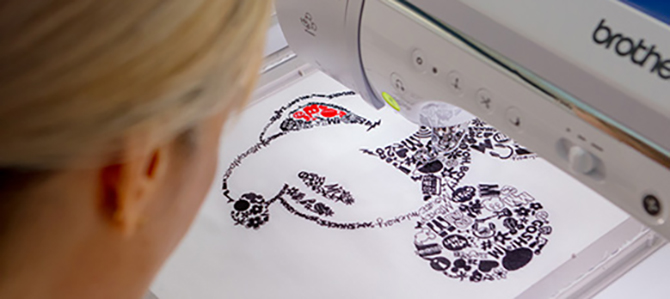

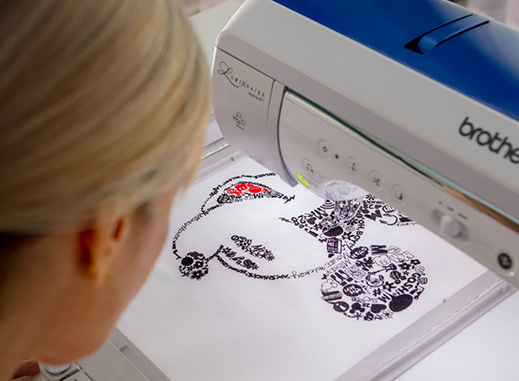

DISNEY IS IN OUR DNA
The Luminaire has the magic of 192 built-in Disney embroidery designs and 10 decorative Disney stitches. Additionally, access exclusive Disney and Disney.Pixar embroidery designs through the iBroidery.com Download Center.*

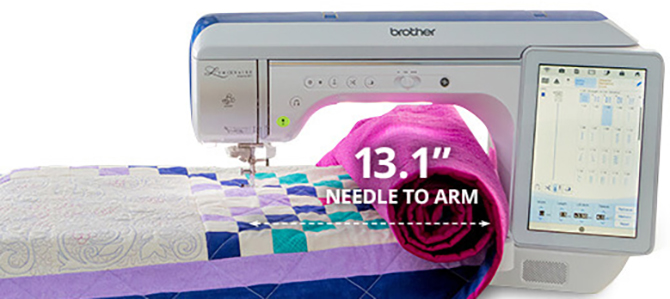

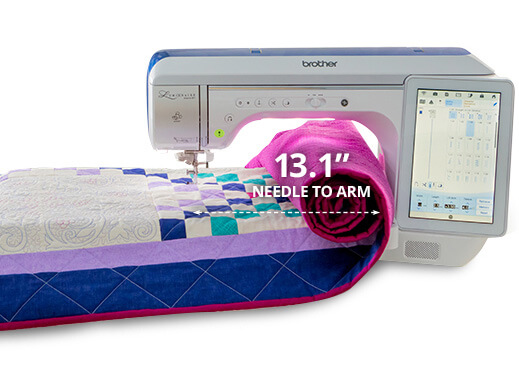

65 SQUARE INCHES OF WORKSPACE
13.1" NEEDLE TO ARM SPAN
Experience the freedom and comfort of sewing on 65 square inches of included workspace, giving you the power to handle virtually any project with ease. A generous needle to arm distance of 13.1" is our largest ever, able to fully accommodate a rolled king-sized quilt.

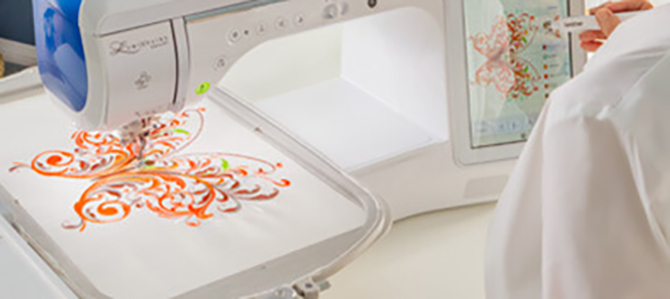

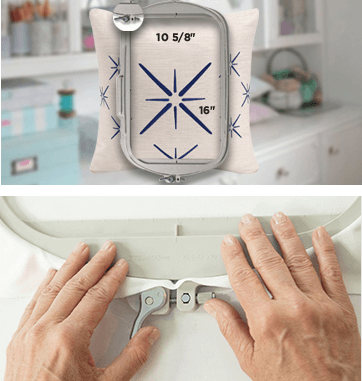

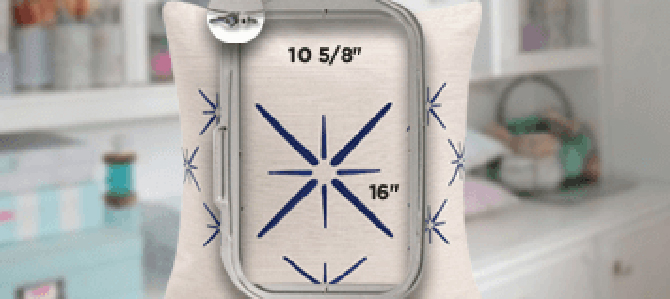

LARGE 10 5/8" X 16"
Make your projects larger than life with the new large 10 5/8" X 16" frame, the largest that Brother currently offers. This extra-large frame has efficient rubber plates on both sides of the inner frame to hold fabric securely.

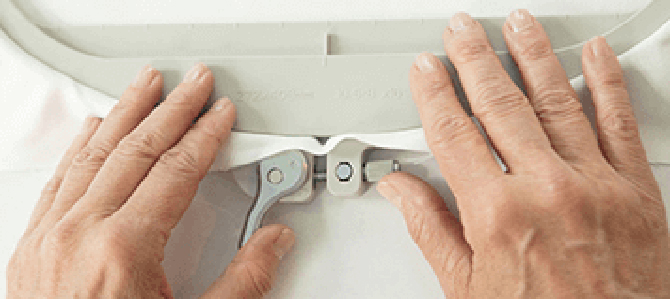

SPRING LEVER RELEASE
A new ergonomic Spring Lever Release enables easier, clamp free hooping. Simply place your fabric in the hoop and engage the lever.

ACCESSORIES
Each accessory was carefully chosen to give you the best tools to complete your projects. Plus, we offer a range of optional accessories you can choose to enhance your experience even more.

To learn more about the innovative features on
the Luminaire Inno-vís XP1, watch the videos below.

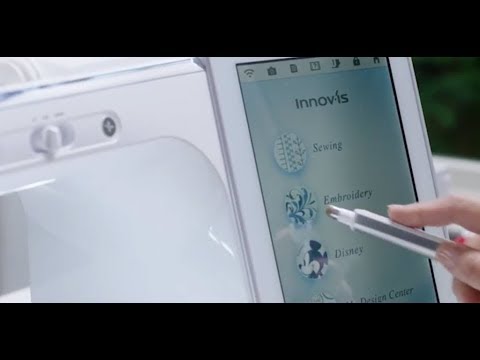

StitchVision Technology and the Dual Purpose Stylus

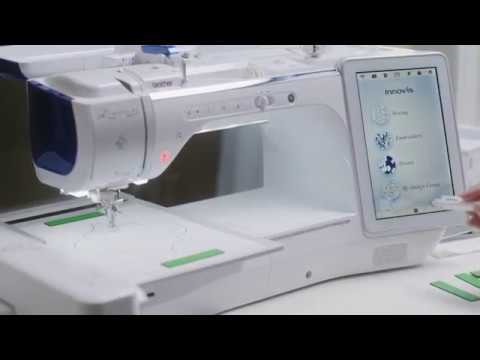

Enhanced My Design Center

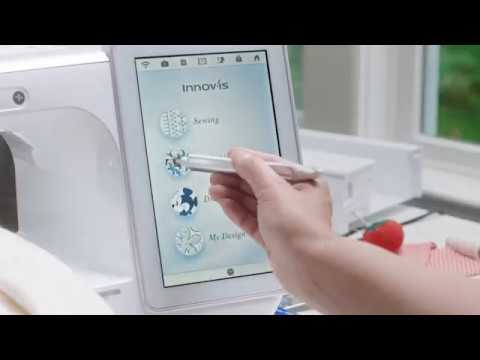

Large Touchscreen LCD Display and Online Editing
Echo Quilting with Disney Designs
New Built-in Designs and Decorative Stitching
Buttonhole Size Detection with InnovEye® Plus Technology
Fast and Easy Bobbin Changes and Needle Threading

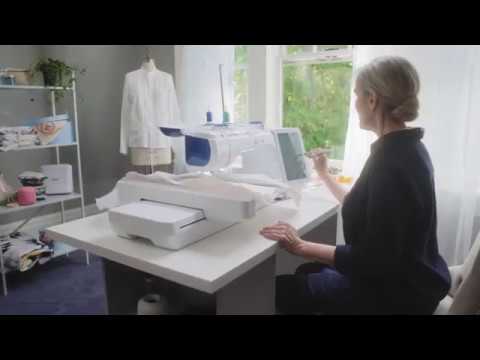

Brother XP1: Easier Sewing, Quilting & Embroidery
Sewing Features
Projected Gridline Marker | Yes |
Projected Guideline Marker | Included Single or Double |
Projected Angled Line Marker | Yes |
Lockstitch Key | Yes |
Stitch Width | 7mm |
Back to Beginning Key | Yes |
Free Arm | Yes |
Built-in Sewing Lettering Fonts | 4 |
Start/Stop Button | Yes |
Presser Foot Levelling | Yes |
Built-in Stitches (includes Buttonhole Styles) | 821 |
Needle Position Key (Up/Down) | Yes |
Bed Area (depth x width) inches | 8"x18.8" |
Stitch Length | 5mm |
Max. Sewing Speed (stitches per minute) | 1,050 |
Buttonhole Styles | 15 one-step and 1 four-step |
Automatic Presser Foot Lifter | Yes |
Side Feeding | Yes |
Presser Foot Pressure Adjustment | Yes |
Feed Dog | 7 (longer version) |
Speed Controller | Yes |
Work Space (Height & Width) inches | 5"x13.1" |
Needle Stop Position | Yes |
Reinforcement/Reverse Stitches | Yes |
Workspace Table | Available for additional purchase |
Twin Needle Setting Key | Yes |
Embroidery Features
Projected LED Embroidery Pointer | Yes |
Colour Sort | Yes |
Space Reduction in Embroidery Alphabets | Yes |
Curving Text on Screen Editing | Yes |
Pattern Rotating | 0.1 Degrees,1, 10 or 90 Degrees |
My Custom Design™ Feature | Yes |
Built-in Disney/Pixar® Character Designs | 192 |
Thread Wiper | Yes |
Built-in Border Function & Designs | Yes |
Max. Embroidery Speed (stitches per minute) | 1,050 |
InnovEye™ Technology | Yes |
Light and Audio Cues to Alert Finished Designs | Yes |
Snowman® Embroidery Positioning Marker | Yes |
Light and Audio Cues with On/Off modes | Yes |
Built-in Frame Designs | 10 Shapes x 14 Stitch Patterns |
Max. Embroidery Area (X x Y) | 10 5/8"x16" |
Light and Audio Cues to Alert Thread Breakage | Yes |
Drag & Drop Editing | Yes |
Light and Audio Cues to Alert Thread Change | Yes |
Colour Shuffling™ Function | Yes |
On-Screen Automatic Density Adjustment (STB) | Yes |
Sewing Decorative Stitches w/Embroidery Arm | Yes |
Realistic Preview | Yes |
Automatic Feed Thread Cutting | Yes |
Compatible with Brother Embroidery Software | Yes, included |
Resume Function | Yes |
Trial Position/Layout Function | Yes |
Included Embroidery Hoops | 5" x 7" Frame,Scanimation™ Scanning Frame,4" x 4" Frame,9.5" x 9.5" Frame,10 5/8" x 16" Frame |
Appliqué Creator Function | Yes |
Built-in Embroidery Lettering Fonts | 24 |
Status Monitoring on Computer Screen | Yes |
Built-in Embroidery Designs (non-license) | 1157 |
Quilting Features
Automatic Height Adjuster™ AHA® Feature | Yes |
Drop Feed/Free Motion | Yes, automatic |
Built-in Quilting Stitches | Yes |
MuVit™ Digital Dual Feed | Included |
Knee Lifter | Included |
Free Motion Quilting Foot | Included |
Included Quilting Feet | Free-motion Echo Quilting Foot,Free-motion Open toe Echo Quilting Foot,Free-motion quilting Foot,1/4" quilting foot with guide |
Pivot Function | Yes |
Carton Contents
Specialty Feet Included | Yes |
Quick Reference Stitch Guides | Yes |
Other Included Accessories | 4 Embroidery Frame Sets,Accessory Bag,Additional Accessories Included in Box,Ballpoint Needle,Bobbins,Dual King Spool Thread Stand,Dual Purpose Stylus,Cleaning Brush,Cord Guide Bobbin Cover,Embroidery Arm,Embroidery Bobbin Thread,Embroidery Needle Plate Cover,Embroidery Positioning Sticker Sheets,Eyelet Punch,Grid Sheet Set,Knee Lifter,Large Accessory Case,Scissors,Scanimation™ Scanning Frame,Screwdriver,Seam Ripper,Snowman® Embroidery Positioning Marker Sheets,Spool Caps,Spool Nets,Stabilizer Material,Straight Stitch Needle Plate,Stylus,Twin Needle |
Accessory Storage | Yes |
Standard Presser Feet Included with Machine | 14 |
Included Accessory Feet | 1/4" quilting foot,Blind stitch foot,Button sewing foot,Camera detecting buttonhole foot ,Dual feed foot,Embroidery foot,Free-motion echo quilting foot,Free-motion open toe quilting foot,Free-motion quilting foot,Monogramming foot,Overcasting stitch foot,Straight stitch foot,Zigzag foot,Zipper foot |
Wide Table | Available for additional purchase |
Foot Controller | Included |
Other
Warranty | 25-Year Limited Warranty |
Basic Features
Projector | Yes |
Adjustable Screen Brightness Settings | Yes |
Media Type(s) | USB |
Recognition Type | Grayscale / Colour recognition |
Easy Bobbin Winding | Automatic bobbin winding system |
Lighting | LED 13" Lighting |
LCD Size (inches) | 10.1`` Capacitive (5.3"x8.5") |
Adjustable Bobbin Winding Speed | Yes |
Opening Screen | Yes |
Needle Threading System | Yes |
Quick Set™ Bobbin | Yes |
Computer Connectivity with Update Capability | Yes |
Adjustment for Thread Tightness | Yes |
Zoom Function | Yes |
Built-in Memory | Yes |
Software Upgrades | Yes |
On-Screen Editing | Yes |
Stitch Select | Touch panel and touch sensor |
Thread Sensor On/Off | Yes |
Thread Sensor | Upper and bobbin |
Electronic Speed Control | Yes |
Automatic Thread Cutter | Yes |
