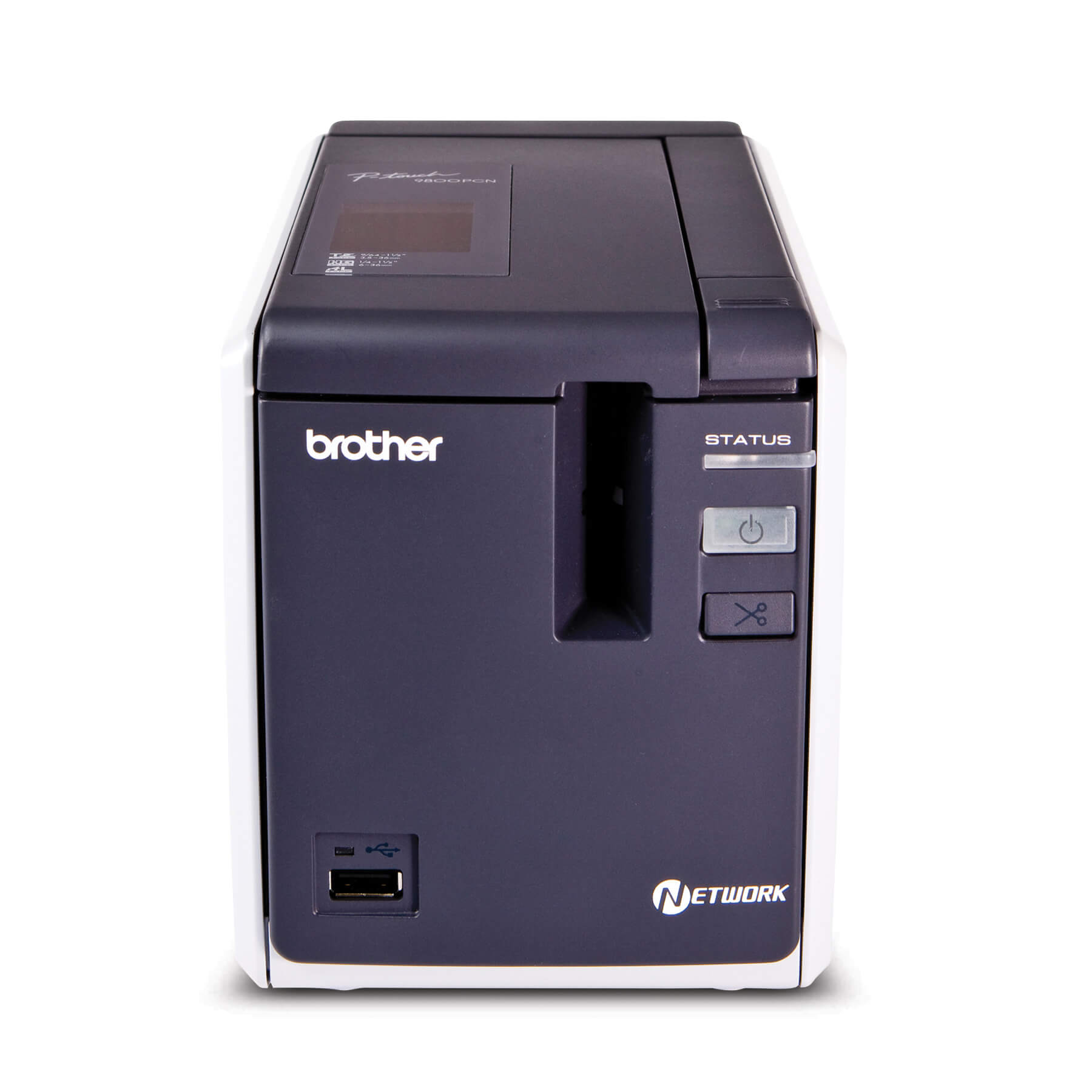

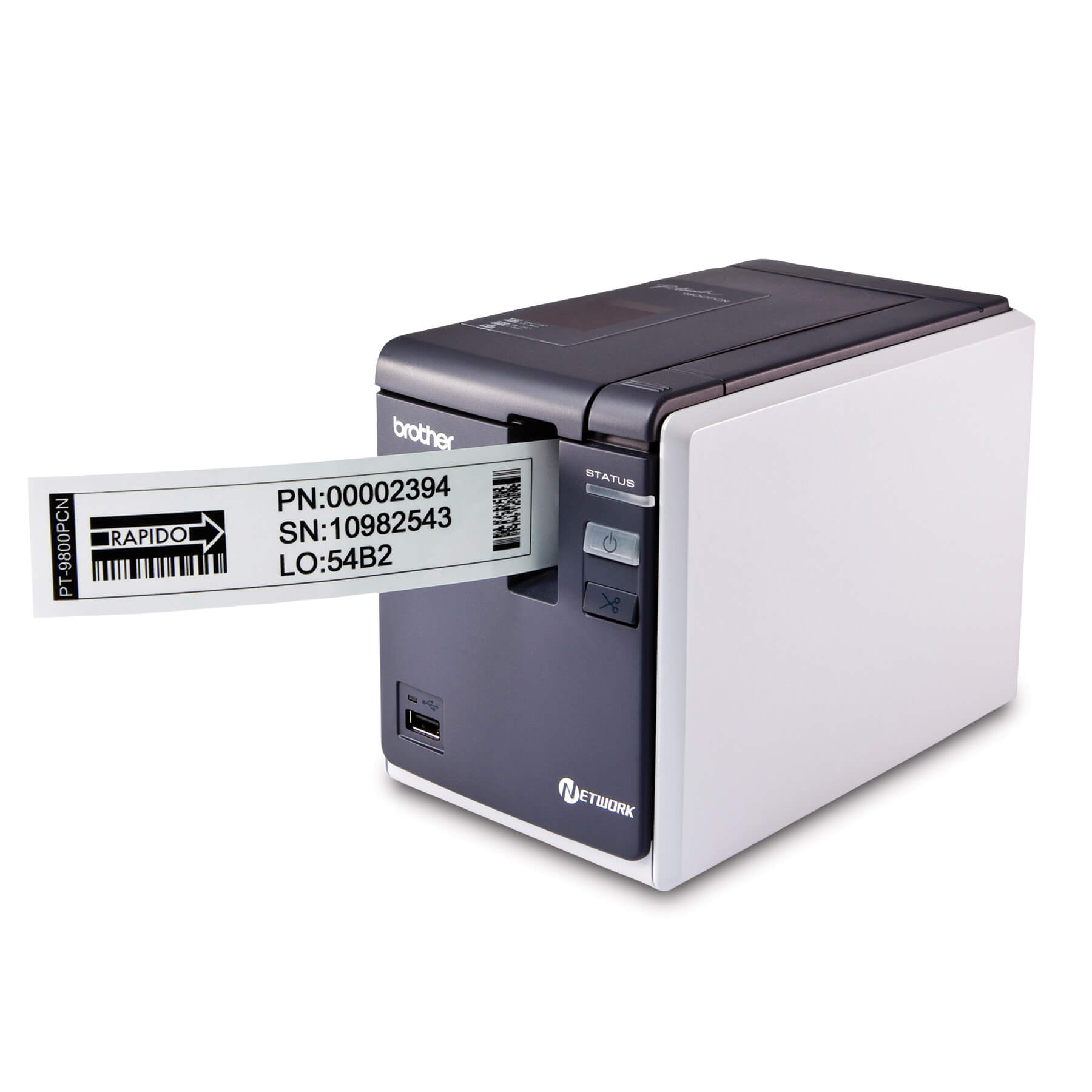

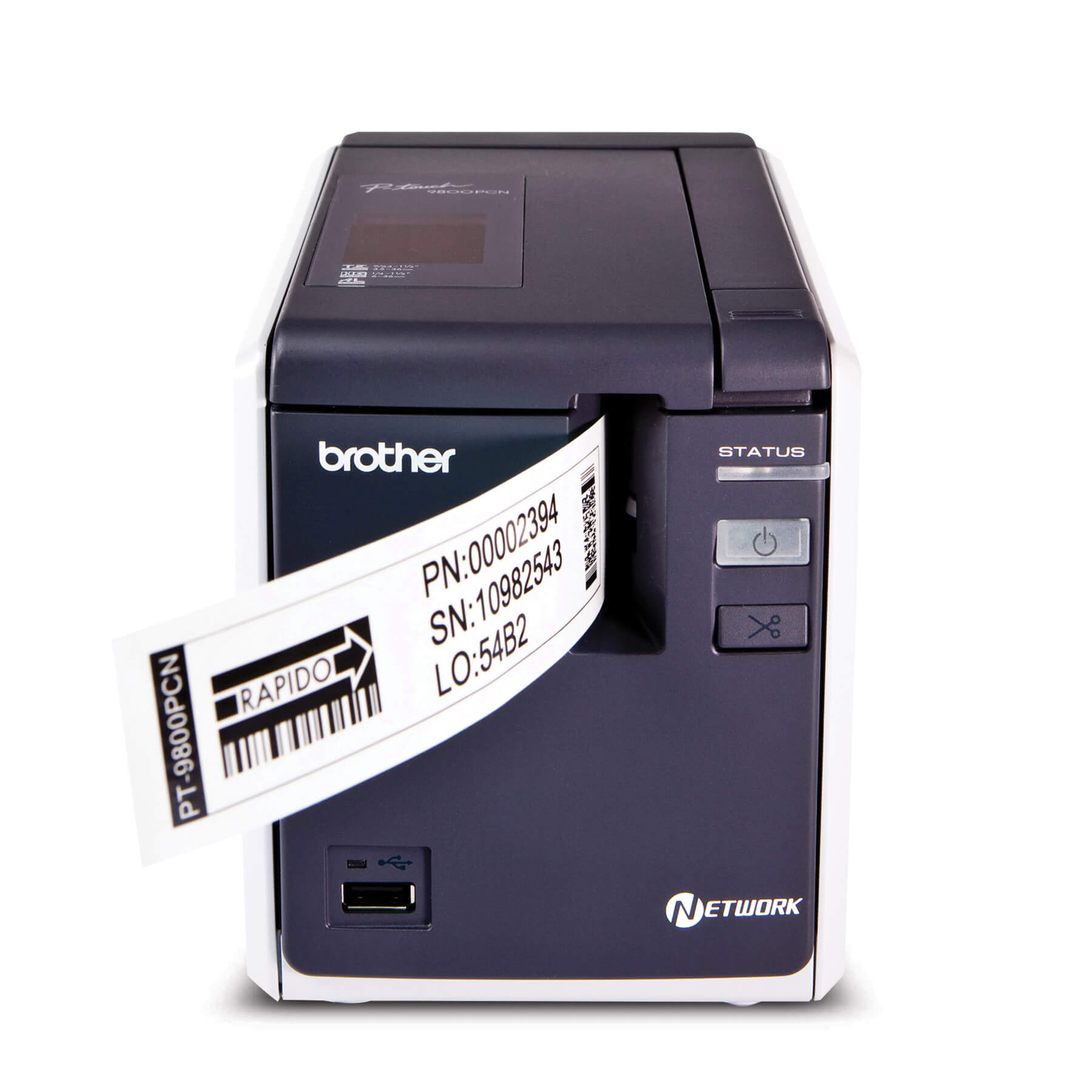

Brother PT-9800PCN Desktop Network Label and Barcode Printer

Model #:
PT9800PCN

Brother PT-9800PCN Desktop Network Label and Barcode Printer

Model #:
PT9800PCN

The PT-9800PCN prints durable, laminated, thermal labels and stickers for applications like parts identification, calibration and asset management, and specimen identification in clinical labs. Read More

Brother PT-9800PCN Desktop Network Label and Barcode Printer

Brother PT-9800PCN Desktop Network Label and Barcode Printer

Model #:
PT9800PCN
$650.74
$649.99 + $0.75 EHF
Environmental Handling Fees (EHF) are applied to the purchase of new electronics to support recycling programs
$650.74 $649.99 + $0.75 EHF
Environmental Handling Fees (EHF) are applied to the purchase of new electronics to support recycling programs
Out of stock

Similar Items

Product Overview

Product Description

Designed for applications that require a more permanent label, the PT-9800PCN desktop network thermal label printer prints truly laminated labels on demand. Although conventional thermal transfer printed labels are fade resistant, durable, and may be used in extreme temperatures, a laminted label offers additional protection against chemicals, moisture and abrasion. These high quality laminated labels are printed at 360 dpi resolution and have a glossy clear finish that makes them ideal for serial number labels in manufacturing, calibration and asset management stickers in quality management, parts and product identification labels in warehouse, specimen identification in clinical labs, and for markings in harsh environment applications.

With a small footprint and attractive industrial design and small footprint, the fast 3.1 ips¹ print speed makes this laminated network thermal label printer suitable for use in line for manufacturing applications. A built-in automatic cutter reliably trims the continuous label to your desirable length, one at a time or configure it to half-cut multiple labels onto a strip for easy label removal.

Unlike other thermal transfer label printers, changing consumables is simple and virtually trouble-free because the PT-9800PCN uses TZ and HG tapes, true drop-in cartridges that contain all the consumables: ink ribbon, adhesive back media and lamination preloaded and ready to go – no adjustments are necessary!

Although designed to be a GDI network printer, fully compatible with Windows® 7² and other Windows® OS computers, the PT-9800PCN network thermal barcode label printer can also be used with other operating systems and standalone devices like a bar code scanner, keyboard, medical or test equipment. Built around a mechanism with a long history of reliability, the PT-9800PCN comes with a 2-year limited warranty and toll free customer support, and everything you need to start printing labels, including AC adapter, HG tape, USB cable and a CD that also includes the powerful but easy to use design software application, PT-Editor. With this combination of high performance, versatility and reliability, why not experience this for yourself and see why the PT-9800PCN is the best value desktop bar code and label printer for professional quality and harsh environment applications.

Main Features

  • Complete barcode software and network label printing solution
  • Prints high quality extremely durable laminated thermal transfer labels
  • Compatible with Windows® OS computers including Windows® 7
  • Drop in tape cartridge design helps make media replacement simple and trouble free
  • Includes PT-Editor 5 professional barcode and label design/print software application
  • Download templates and print from a barcode scanner keyboard or other standalone device
  • Prints high quality 360 dpi text graphics and barcodes
  • Fast host based printing – up to 80 mm/sec
  • Reliable built-in automatic cutter
  • 10/100 Base TX Ethernet USB 2.0 (host and peripheral) and RS-232C serial interface connectivity
Specifications

Print

Vertical Printing Yes
Rotate Printing Yes
Max. Print Height 27.1mm
Database Printing Yes
Mirror Printing Yes
Barcodes (connected to computer) Codabar (NW-7), Code 128, Code 39, Data Matrix, EAN-13, EAN-8, GS1 DataBar (RSS), ISBN-2, ISBN-5, ITF (I-2/5), Laser Barcode, MaxiCode, Micro QR Code, PDF-417, POSTNET, QR Code, UCC/EAN-128, UPC-A, UPC-E
Barcodes (stand-alone mode) Codabar (NW-7), Code 128, Code 39, Data Matrix, EAN-13, EAN-8, GS1 DataBar (RSS) 2-Dimensional: QR Code, GS1-128 (UCC/EAN-128), ITF (I-2/5), Maxicode, Micro PDF417, PDF417, QR Code/Micro QR Code, UPC-A, UPC-E
Barcode Printing True

Carton Contents

Carton Contents One 24mm x 8m Black on White laminated "HGe" tape, USB interface cable, P-touch Editor software and printer drivers, AC adapter, user guide

Other

Warranty 1-Year Limited Warranty
Tape Technology Laminated Thermal Transfer
Multi-Block Yes
Housing Colour Black/Gray
(Mac) Minimum RAM memory 128 MB
Tape Types Non-laminated, Acid Free, Extra Strength Adhesive, Flexible ID, High Grade, Iron-On Fabric, Standard Adhesive, Stencil, Tamper-Evident
Internal Fonts Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic
Unit Weight 1.6 kg
Internal Font Styles ESC P: Bold, Italic, Underline Template: Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow
